Rockwell Automation EtherNet I/P Connected Products

What is it?

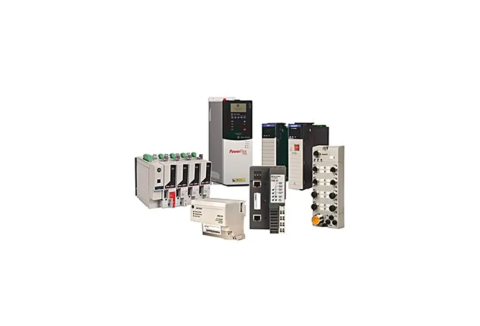

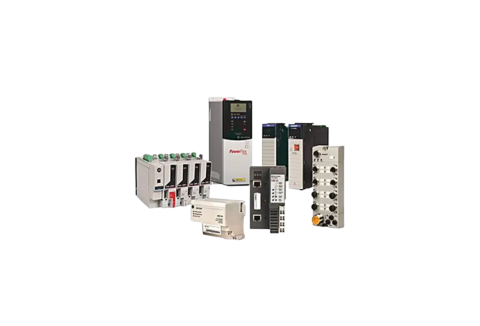

The Rockwell Automation EtherNet/IP Connected Products are a comprehensive range of industrial devices and components, all equipped with built-in EtherNet/IP connectivity. These products include controllers, I/O modules, operator interfaces, drives, sensors, and more, designed to seamlessly communicate with each other and with networks in industrial automation environments.

How does it work?
These products utilize the EtherNet/IP standard, an industrial Ethernet protocol that enables real-time data exchange between devices. Many modules feature embedded switch technology, allowing easy integration into network configurations with redundancy and ring topologies. This ensures reliable communication, straightforward installation, and flexibility in network design.

What problems does it solve?
EtherNet/IP Connected Products help manufacturers and operators improve network connectivity, reduce wiring complexity, and increase the efficiency of data collection and control. They support secure, reliable, and scalable networks essential for modern industrial automation, reducing downtime and simplifying maintenance. This leads to higher productivity and lower operational costs.

Operating Temperature:
0 °C to 60 °C

Storage Temperature:
-40 °C to 85 °C

Power Supply:
Via backplane chassis or separate power supply, depending on the module

Communication Protocols:
EtherNet/IP (embedded), DeviceNet, ControlNet, Data Highway Plus (DH+), Remote I/O, SynchLink (depending on model)

Number of Logix Connections:
Varies from 32 to 256 (depending on module and network configuration)

Network Topologies:

Point-to-point
Ring (Device Level Ring - DLR)
Redundancy via Parallel Redundancy Protocol (PRP)

Security:
Supports CIP Security (available on selected modules only)

Mounting:
1756 chassis (rackmount)

Enclosure Rating:
IP20 (protection inside chassis/panel)

Conformal Coating Option:
Yes, for harsh environments (indicated by suffix ‘K’ in catalog number)

Dimensions:
Typically approx. 110 x 25 x 127 mm (per module, varies by type)

Weight:
Approximately 100–200 grams per module

Certifications:
CE, UL, cUL, RoHS-compliant

Features:

Real-time I/O messaging
Network security (CIP Security)
Data synchronization
Network resiliency via DLR and PRP
Embedded switch technology on many modules

EtherNet/IP Network Devices
